- a. CONTROLLER – Connect the controller to the 110 or 230V output of the Timer in parallel to the re-circulation pump. This will prevent accidental feeding of chemicals when the pump is not running. Make sure to follow the electrical code.

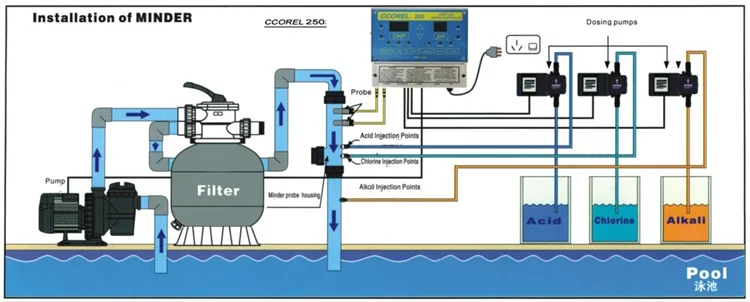

- b. SENSORS – Install the ORP and pH sensors on the re-circulation line or on the optional bypass line. The two sensors can be mounted directly on the main re-circulation line with 2″ PVC tees, as shown on the schematic. For re-circulation lines over 2″ in diameter lines, the sensors should be mounted on a 1/2″ bypass line.
- c. CHEMICAL FEEDERS – Connect the chemical feeders to the 110 or 230V controller outputs, according to the manufacturer’s instructions, making sure to inject the chemicals downstream of the sensors. For a bromine or chlorine erosion feeder, install a corrosion-resistant solenoid valve on the intake line of the feeder. The controller is compatible with most ozonators and electrolytic generators.

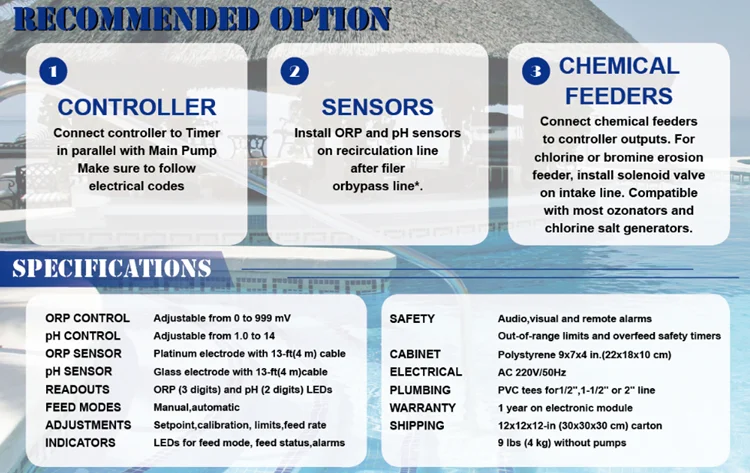

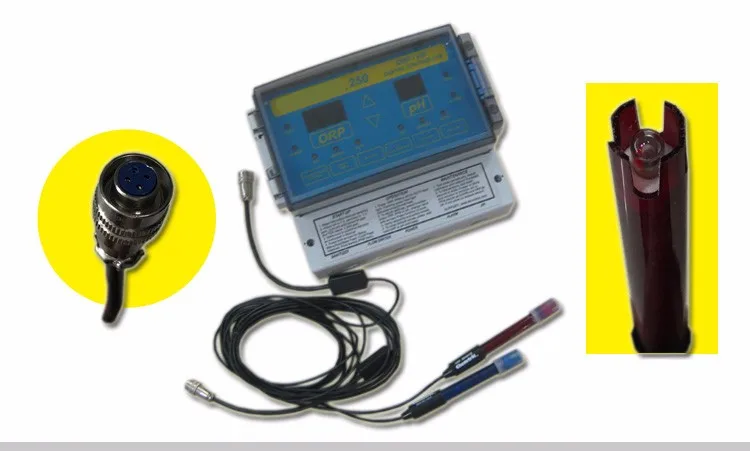

Specification of Chemtrol 250
Description | Water quality monitor |
Model | Chemtrol 250# |
Monitoring items | PH & ORP |
Size | 220 x 180 x 100mm |
Warranty | 1 year |
Features:
–Easy to install
–Simple to use
–All functions on front panel
–Adjustable sctpoints
–Adjustable Alarms
–Acid/Base Selector
–Proportional Feed
–Overfeed safety timers
–Rain and Splash proff Cabinet
–1-year Electronics warranty
Packing & Delivery
