Looking for a high-quality swimming pool filter that can withstand prolonged exposure to sunlight? Look no further than our PIKES swimming pool filter, made of durable fiberglass. Our quartz sand filters are also a popular choice, available in top mount, side mount, and commercial options. For even deeper filtration, we offer swimming pool deep bed filters, side-mounted deep bed filters, and high-quality fiberglass tall sand filters. Contact us today to find the perfect swimming pool filter for your needs.
Model: SL Series
| Technical Characteristics | |||||
| Mode | Filter Area (㎡) | Vatve Connections | Max Flow Rate | Gravel (kg) | |
| SL700-1.0 | 0.38 | 1.5inch 63mm | 253Ipm 15.20m³/h | 580 | |
| SL700-1.2 | 0.38 | 1.5inch 63mm | 253Ipm 15.20m³/h | 696 | |
| SL800-1.0 | 0.50 | 2.0inch 63mm | 333Ipm 20.00m³/h | 769 | |
| SL800-1.2 | 0.50 | 2.0inch 63mm | 333Ipm 20.00m³/h | 714 | |
| SL900-1.0 | 0.63 | 2.0inch 63mm | 420Ipm 25.20m³/h | 957 | |
| SL900-1.2 | 0.63 | 2.0inch 63mm | 420Ipm 25.20m³/h | 1146 | |
| SL1000-1.0 | 0.78 | 2.0inch 63mm | 520Ipm 31.20m³/h | 1204 | |
| SL1000-1.2 | 0.78 | 2.0inch 63mm | 520Ipm 31.20m³/h | 1436 | |

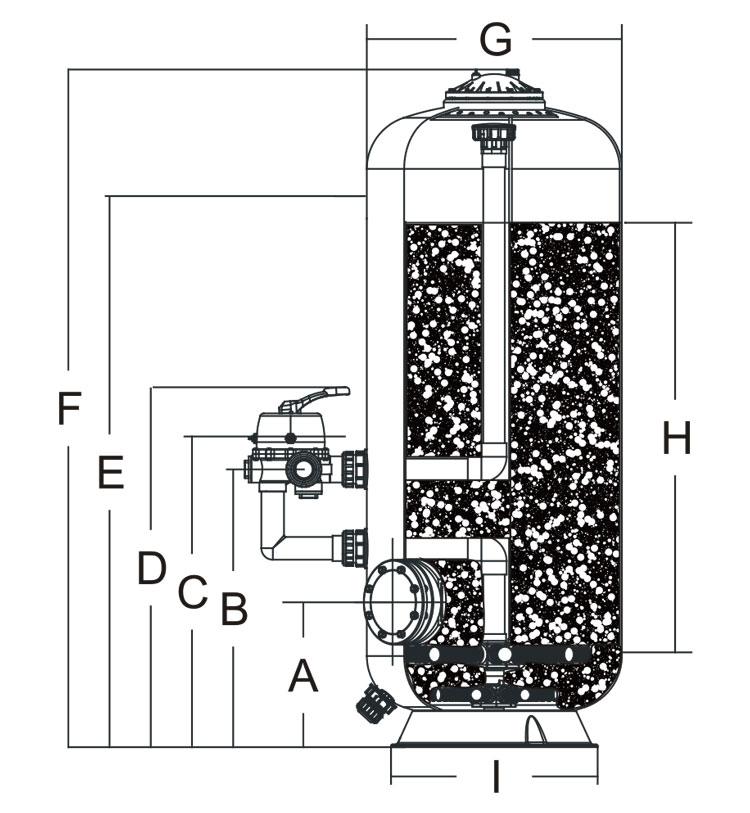

| Mode | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | I(mm) | |
| SL700-1.0 | 388 | 758 | 844 | 987 | 1320 | 1672 | 700 | 1000 | 576 | |
| SL700-1.2 | 388 | 758 | 844 | 987 | 1520 | 1872 | 700 | 1200 | 576 | |
| SL800-1.0 | 422 | 752 | 838 | 981 | 1313 | 1702 | 800 | 1000 | 800 | |
| SL800-1.2 | 422 | 752 | 838 | 981 | 1513 | 1902 | 800 | 1200 | 800 | |
| SL900-1.0 | 441 | 771 | 857 | 1000 | 1331 | 1735 | 900 | 1000 | 800 | |
| SL900-1.2 | 441 | 771 | 857 | 1000 | 1531 | 1935 | 900 | 1200 | 800 | |
| SL1000-1.0 | 515 | 885 | 971 | 1114 | 1406 | 1813 | 1000 | 1000 | 995 | |
| SL1000-1.2 | 515 | 970 | 971 | 1199 | 1506 | 2013 | 1000 | 1200 | 995 | |
Instruction of install our swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the laterals
about 1/3 of the tank is recommended. This will avoid damages to the laterals by the force of the sand when pouring into the filter.
Manufacturing factory & Production Process of our swimming pool sand filter
We have a experience and expertise together with our devoted staffs.
Our goal is ” Quality is our culture and we will try best to provide the unsurpassed customer service”
