SDB DEEP-BED FILTER
“SDB” Series Side Mount Deep Bed Filter offers a more thorough filtration with the standard of either 1.0m or 1.2m depth sand bed which is suitable for high filtration performance of domestic swimming pool.

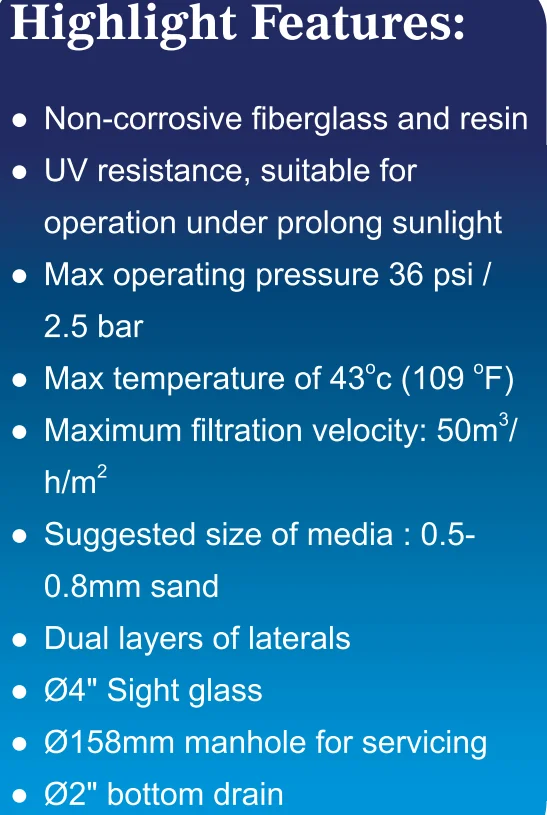

Features:
• Non-corrosive fiberglass and resin
• UV resistance, suitable for operation under prolong sunlight
• Max operating pressure 36 psi / 2.5 bar
• Max temperature of 43°C (109 °F)
• Maximum filtration velocity: 50m3/h/m2
• Suggested size of media : 0.5-0.8mm sand
• Dual layers of laterals
• Ø4″ Sight glass
• Ø158mm manhole for servicing
• Ø2″ bottom drain

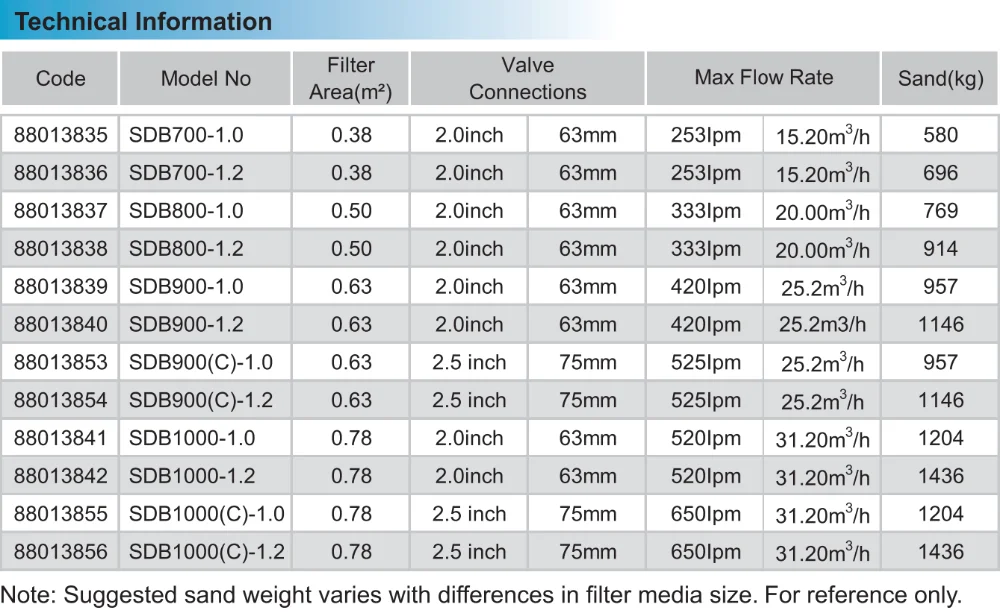

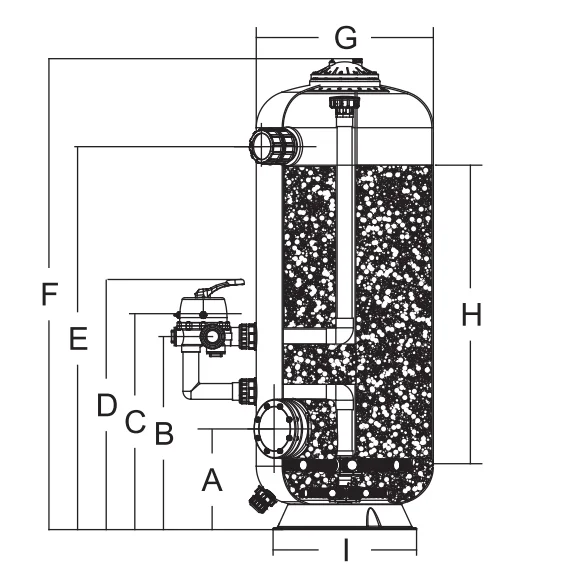

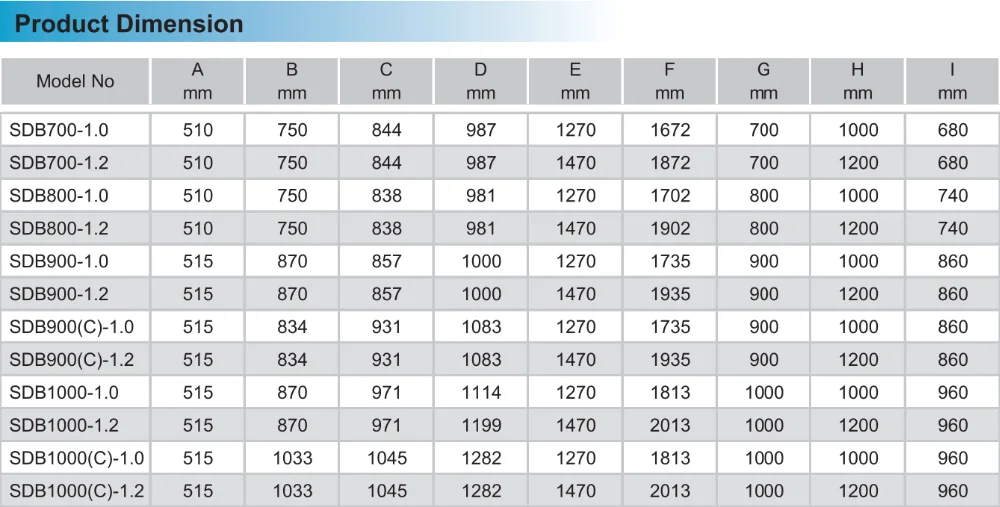

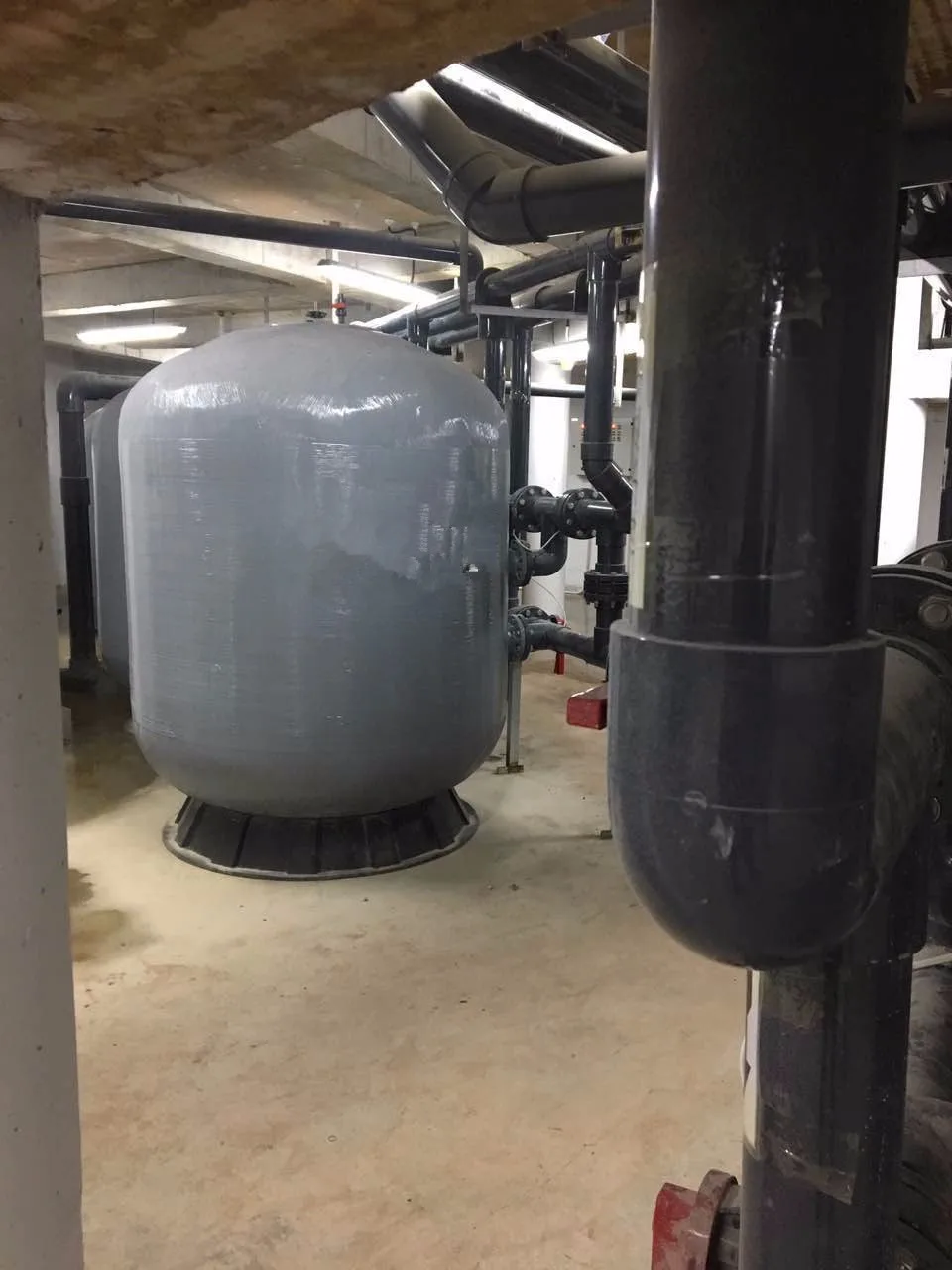

Detailed Images
Packing & Delivery
