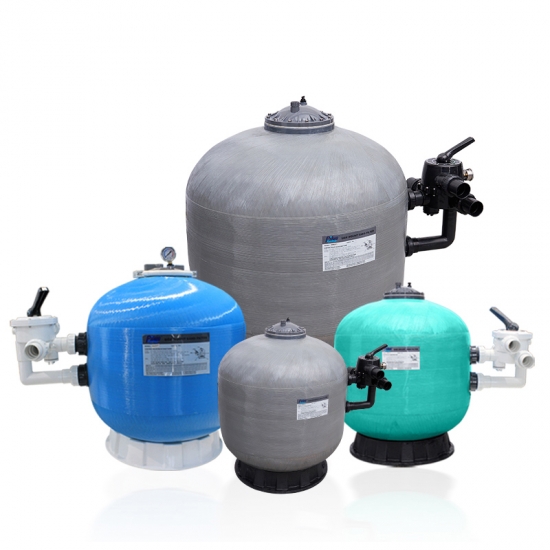

The Side Mount Fiberglass Sand Filter PS525-1400 is a durable and reliable swimming pool sand filter. It’s made of fiberglass reinforced plastics, which makes it corrosion-resistant, abrasion-resistant, and deforming-proof. The filter has a unique distribution design that ensures stability and easy installation. It’s a side mount sand filter that’s easy to maintain and perfect for any swimming pool. With its top-quality features, the PS525-1400 is an excellent choice for keeping your pool clean and clear.
Model: PS525-PS1400

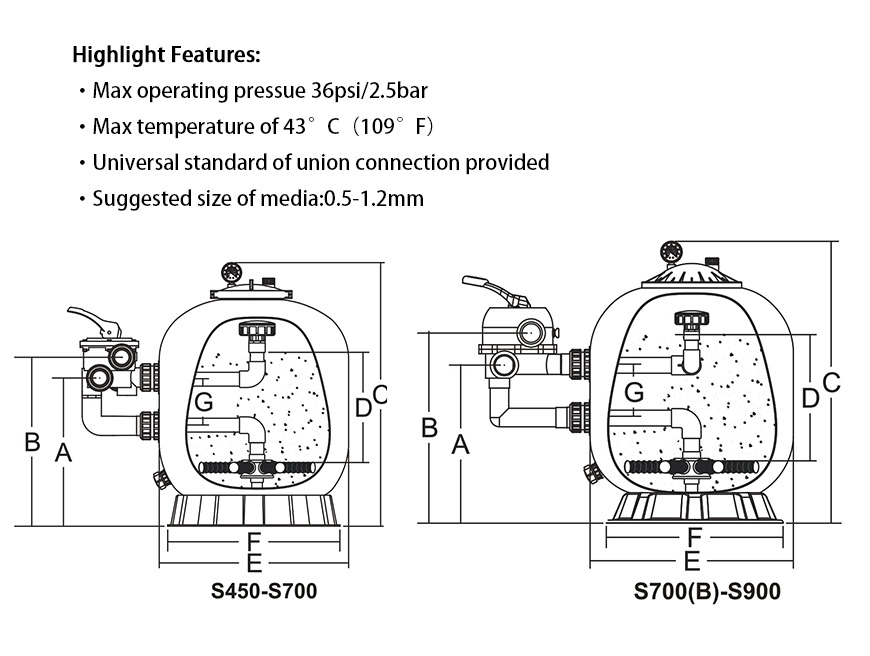

| Technical Characteristics | |||||||
| Mode | Filter Area (㎡) | Vatve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm | |
| PS525 | 0.22 | 1.5inch 50mm | 12m³/h | 85 | 780 | 525 | |
| PS625 | 0.30 | 1.5inch 50mm | 16m³/h | 150 | 880 | 625 | |
| PS700 | 0.40 | 2.0inch 63mm | 20m³/h | 210 | 945 | 700 | |
| PS700B | 0.40 | 2.0inch 63mm | 21m³/h | 215 | 945 | 700 | |
| PS750 | 0.45 | 2.0inch 63mm | 23m³/h | 300 | 960 | 750 | |
| PS800 | 0.50 | 2.0inch 63mm | 25m³/h | 355 | 1080 | 800 | |
| PS900 | 0.64 | 2.0inch 63mm | 31m³/h | 470 | 1100 | 900 | |
| PS1000 | 0.79 | 2.0inch 63mm | 36m³/h | 620 | 1285 | 1000 | |
| PS1100 | 0.96 | 2.0inch 63mm | 42m³/h | 800 | 1380 | 1100 | |
| PS1200 | 1.13 | 2.0inch 63mm | 45m³/h | 900 | 1500 | 1200 | |
| PS1400 | 1.54 | 2.0inch 63mm | 56m³/h | 1350 | 1580 | 1400 | |
Instruction of install our swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the laterals
about 1/3 of the tank is recommended. This will avoid damages to the laterals by the force of the sand when pouring into the filter.
