The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder.
Model:PS1200-PS2350
| Technical Characteristics | |||||||
| Mode | Filter Area (㎡) | Vatve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm | |
| PS1200 | 1.13 | 3.0inch 90mm | 55m³/h | 900 | 1410 | 1200 | |
| PS1400 | 1.54 | 3.0inch 90mm | 76m³/h | 1350 | 1570 | 1400 | |
| PS1600 | 2.06 | 4.0inch 110mm | 100m³/h | 2300 | 1740 | 1600 | |
| PS1800 | 2.52 | 6.0inch 160mm | 120m³/h | 2900 | 2040 | 1800 | |
| PS2000 | 2.97 | 6.0inch 160mm | 145m³/h | 4000 | 2210 | 2000 | |
| PS2300 | 4.43 | 8.0inch 200mm | 210m³/h | 6000 | 2510 | 2300 | |
| PS2350 | 4.43 | 8.0inch 200mm | 210m³/h | 6600 | 2510 | 2350 | |

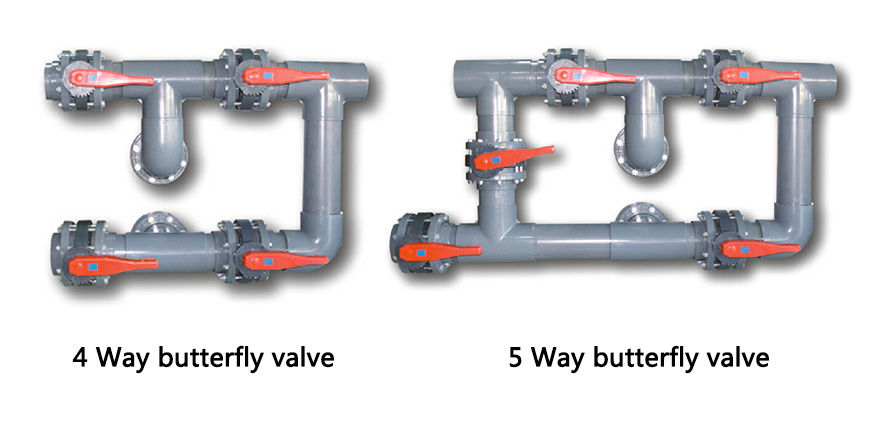

4/5 Way Butterfly Valve
Maximun Working Pressure: 250kPa/36psi/2.5bar
Factory Testing: 400kPa/58psi/4.0bar
Maximum Water Temperature: 43℃(109℉)
Instruction of install our swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the laterals
about 1/3 of the tank is recommended. This will avoid damages to the laterals by the force of the sand when pouring into the filter.
