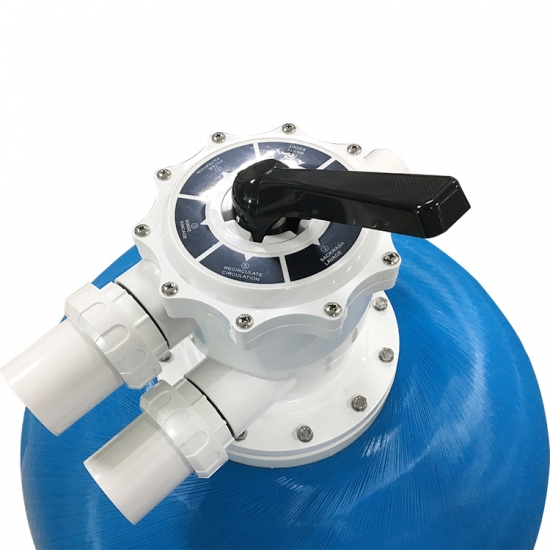

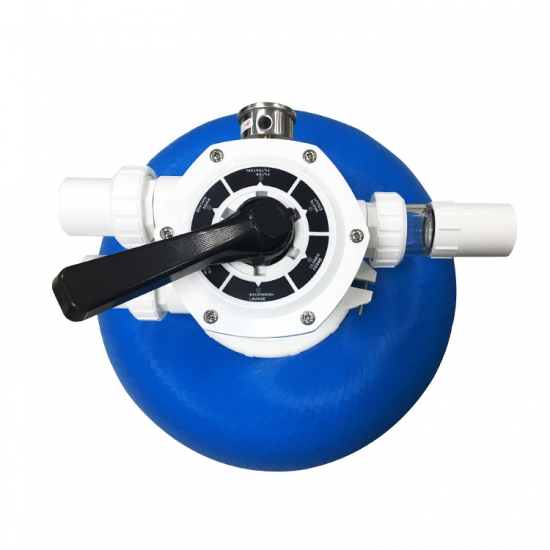

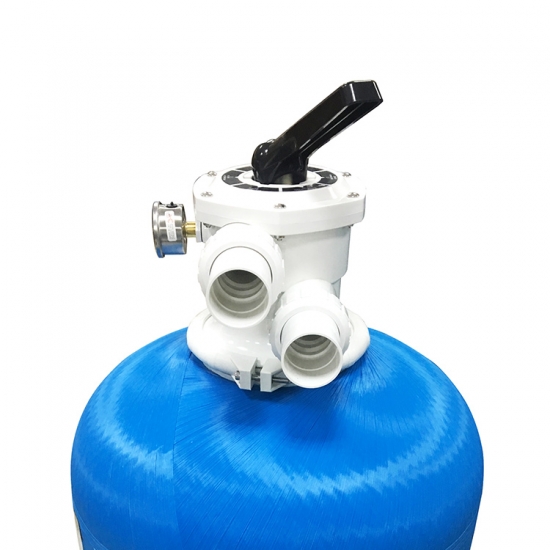

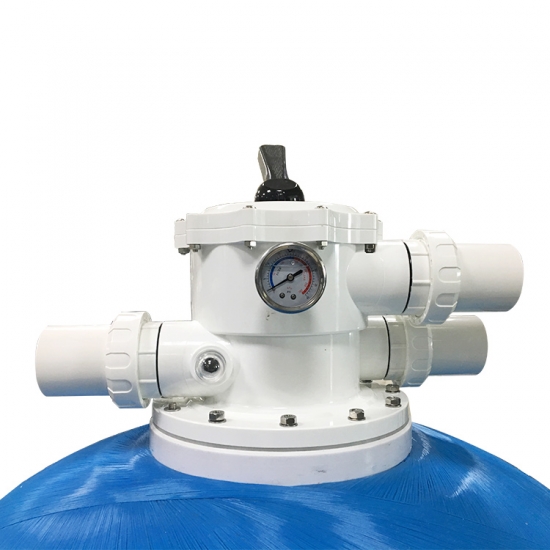

Swimming pool sand filter is still the most popular standard in the industry after all.With UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability.Swimming Pool sand filter with 2” multi-port value.
| Technical Characteristics | |||||||
| Mode | Filter Area (㎡) | Vatve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm | |
| P700B | 0.40 | 2.0inch 63mm | 21m³/h | 215 | 1150 | 700 | |
| P750 | 0.45 | 2.0inch 63mm | 23m³/h | 300 | 1180 | 750 | |
| P800 | 0.50 | 2.0inch 63mm | 25m³/h | 355 | 1310 | 800 | |
| P900 | 0.64 | 2.0inch 63mm | 31m³/h | 470 | 1380 | 900 | |
| P1000 | 0.79 | 2.0inch 63mm | 36m³/h | 620 | 1495 | 1000 | |
| P1100 | 0.96 | 2.0inch 63mm | 42m³/h | 800 | 1580 | 1100 | |
| P1200 | 1.13 | 2.0inch 63mm | 45m³/h | 900 | 1600 | 1200 | |
| P1400 | 1.54 | 2.0inch 63mm | 56m³/h | 1350 | 1810 | 1400 | |
Instruction of install our swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a
dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with
water to the level that covers the laterals
about 1/3 of the tank is recommended. This will avoid damages to the laterals by the force of the
sand when pouring into the filter.
