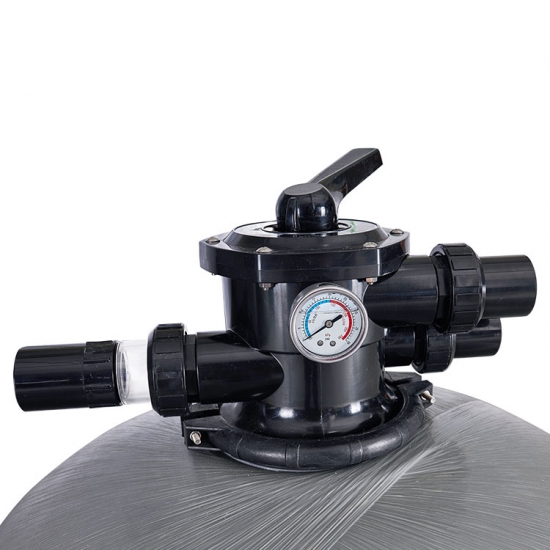

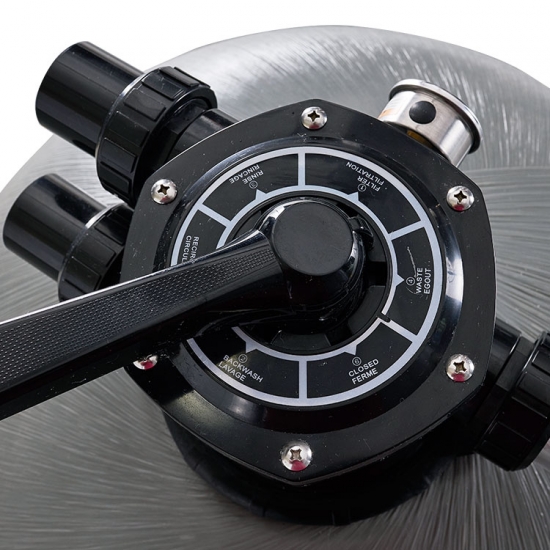

The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder. All the procedures have multi-directional valve operation and regular recoil and blow-down.

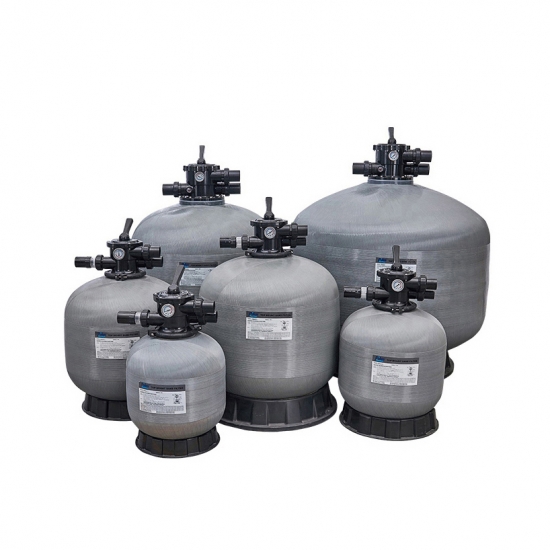

Model : P400 – P1400

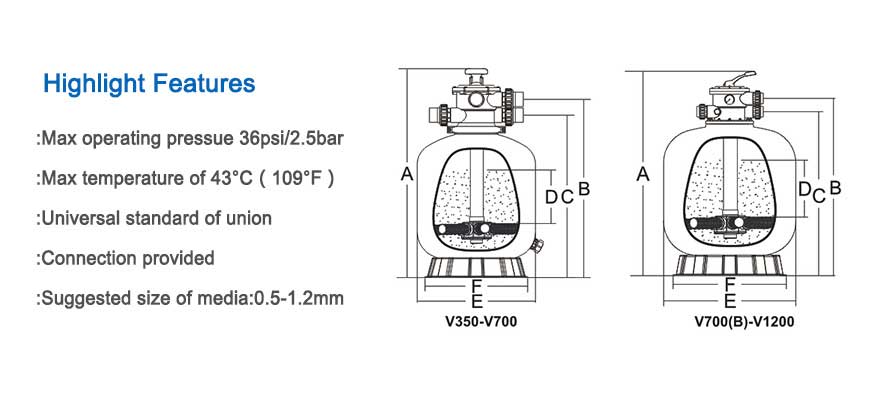

| Technical Characteristics | |||||||
| Mode | Filter Area (㎡) | Vatve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm | |
| P400 | 0.13 | 1.5inch 50mm | 8m³/h | 35 | 760 | 400 | |
| P450 | 0.16 | 1.5inch 50mm | 10m³/h | 45 | 815 | 450 | |
| P525 | 0.22 | 1.5inch 50mm | 12m³/h | 85 | 880 | 525 | |
| P625 | 0.30 | 1.5inch 50mm | 16m³/h | 150 | 1005 | 625 | |
| P700 | 0.40 | 1.5inch 50mm | 20m³/h | 210 | 1100 | 700 | |
| P700B | 0.40 | 2.0inch 63mm | 21M3/H | 215 | 1150 | 700 | |
| P750 | 0.45 | 2.0inch 63mm | 23M3/H | 300 | 1180 | 750 | |
| P800 | 0.50 | 2.0inch 63mm | 25M3/H | 355 | 1310 | 800 | |
| P900 | 0.64 | 2.0inch 63mm | 31M3/H | 470 | 1380 | 900 | |
| P1000 | 0.79 | 2.0inch 63mm | 36M3/H | 620 | 1495 | 1000 | |
| P1100 | 0.96 | 2.0inch 63mm | 42M3/H | 800 | 1580 | 1100 | |
| P1200 | 1.13 | 2.0inch 63mm | 45M3/H | 900 | 1600 | 1200 | |
| P1400 | 1.54 | 2.0inch 63mm | 56M3/H | 1350 | 1810 | 1400 | |
Instruction of install our swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the laterals
about 1/3 of the tank is recommended. This will avoid damages to the laterals by the force of the sand when pouring into the filter.
