Factory best industrial commercial use for water treatment plan

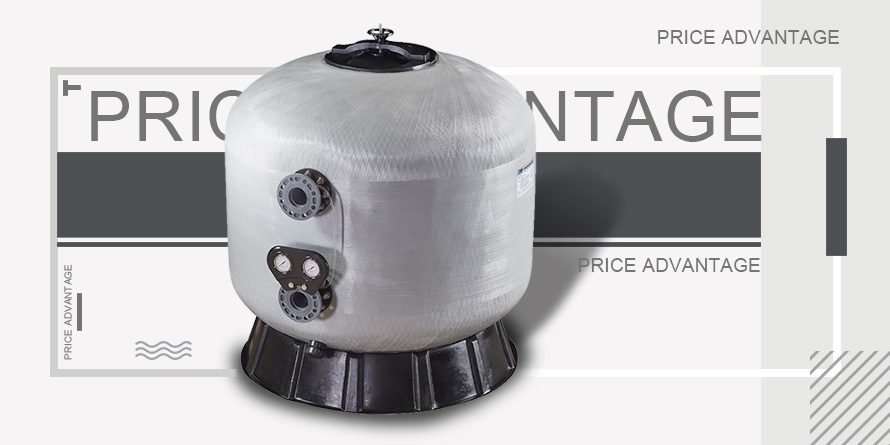

Commercial use swimming pool filter is still the most popular standard in the industry,with UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability.
The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder.

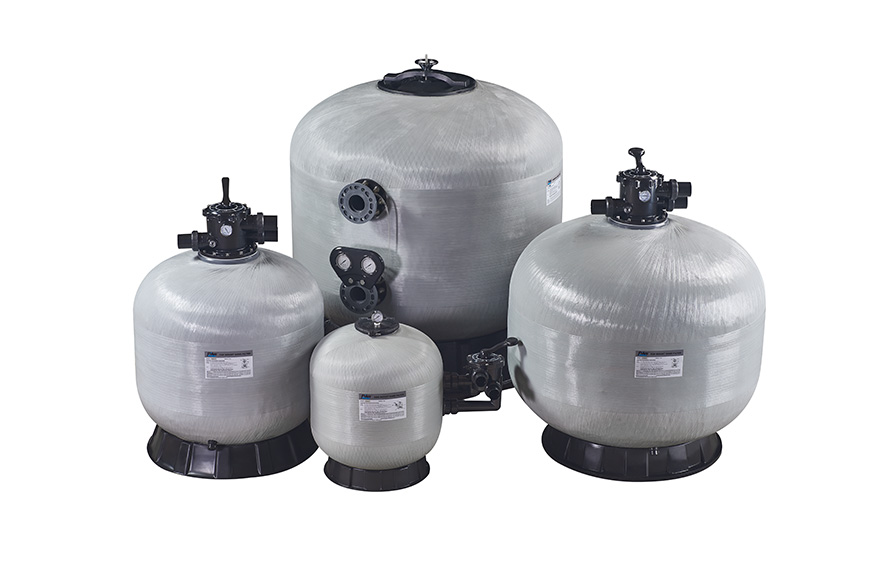

Model:PS1200-PS2300
| Technical Characteristics | |||||||
| Mode | Filter Area (㎡) | Vatve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm | |
| PL1200 | 1.13 | 3.0inch 90mm | 55m³/h | 900 | 1410 | 1200 | |
| PL1400 | 1.54 | 3.0inch 90mm | 75m³/h | 1350 | 1570 | 1400 | |
| PL1600 | 2.06 | 4.0inch 110mm | 100m³/h | 2300 | 1740 | 1600 | |
| PL1800 | 2.52 | 6.0inch 160mm | 120m³/h | 2900 | 2040 | 1800 | |
| PL2000 | 2.97 | 6.0inch 160mm | 145m³/h | 4000 | 2210 | 2000 | |
| PL2350 | 4.43 | 8.0inch 200mm | 210m³/h | 6000 | 2510 | 2350 | |
| PL2500 | 4.89 | 8.0inch 200mm | 240m³/h | 6700 | 2670 | 2500 | |
We have a experience and expertise together with our devoted staffs.
Our goal is ” Quality is our culture and we will try best to provide the unsurpassed customer service”
