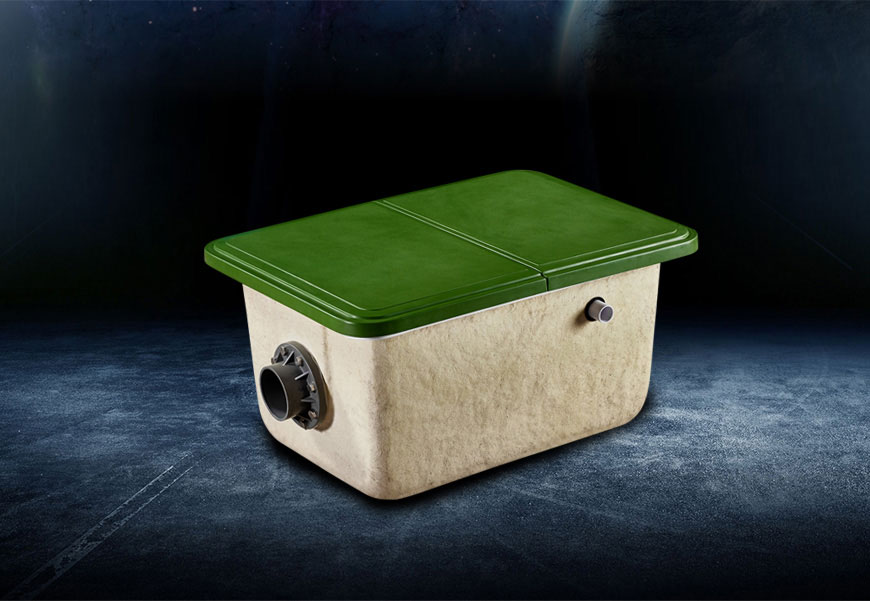

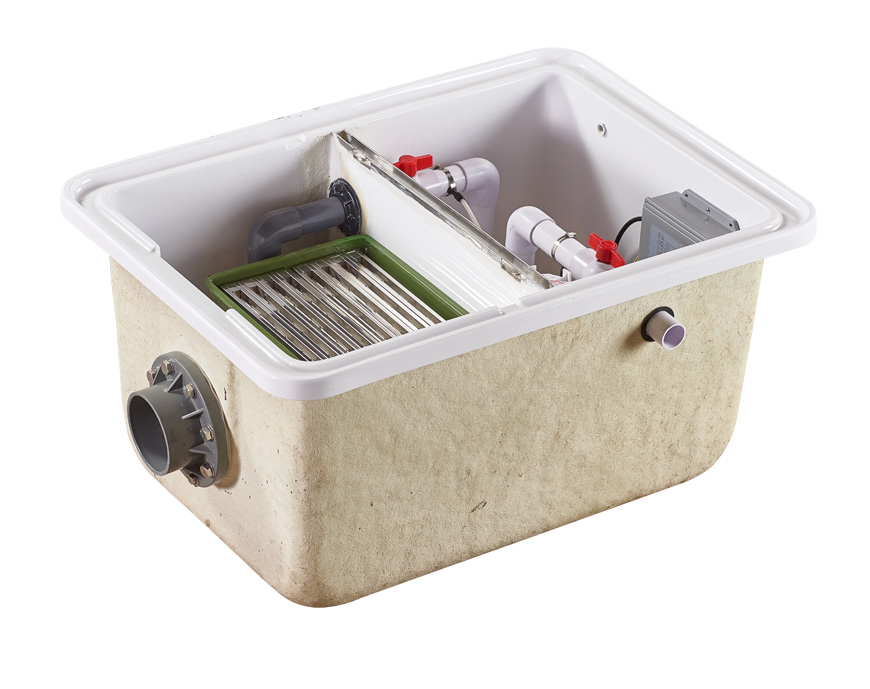

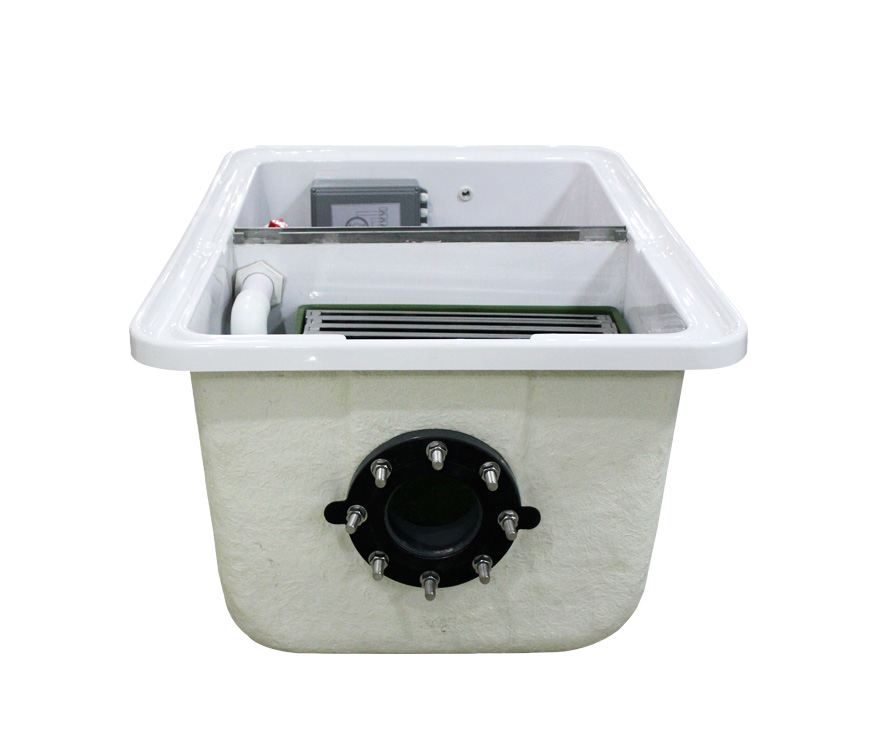

Inground swimming pool filter enclosure is made of high quality fiberglass and polyvinyl chloride,has the advantages of sturdy and durable, rust-proof and low-temperature resistance ans anti-UV light, etc.
Swimming pool filter is equipped with fiber timing automatic control system and automation system. It is easy to install and does not require special design room.

| TECHNICAL CHARACTERISTICS | |
| Dimensions | 1370x 1000x 720mm |
| Flow rate | 47m³/h |
| Voltage | 380V / 50Hz or 60Hz |
| Precision of filtration bag | ≤5u |
| Operating noise | ≤50Db |
| Material | Acrylic |
| Installation | Inground |
| EQUIPMENT | |
| Filtration Pump | 1x4HP |
| Filtration basket with bag | 8pc |
| Chlorine feeder | 1pc |
| Light | 1x LED or 100W |
| Time controller | 1pc |
| Swim jet | 2pcsX5” |
| 6” Connection inlet | 1pc |
| Heater (optional) | 1pc |
| Ozone(optional) | 1pc |
| SYSTEM | |
| Filtration system | 1pc |
| Disinfection system | 1pc |
| Time control system | 1pc |
| Circle system | 1pc |
| Lighting system | 1pc |



We have a experience and expertise together with our devoted staffs.
Our goal is ” Quality is our culture and we will try best to provide the unsurpassed customer service”
