Factory Price Portable Swimming Pool Sand Filter And Pump Equipment
Designed for easy set-up domestic pool, “FSB” series filtration combo offers the right solution for home user who is looking for user-friendly and excellent filtration performance. FSB series filtration combo includes side mount fiberglass filter tank, swimming pool pumps attached with base.
Products Description
Technical Characteristics
Model | Max Flow Rate | Filter | Pump | Valve Connections | Sand(kg) |
PSF500-6W | 12m³/h | PS525 | SC100 | 1.5inch(50mm) | 85 |
PSF650-6W | 16m³/h | PS625 | SC150 | 1.5inch(50mm) | 150 |

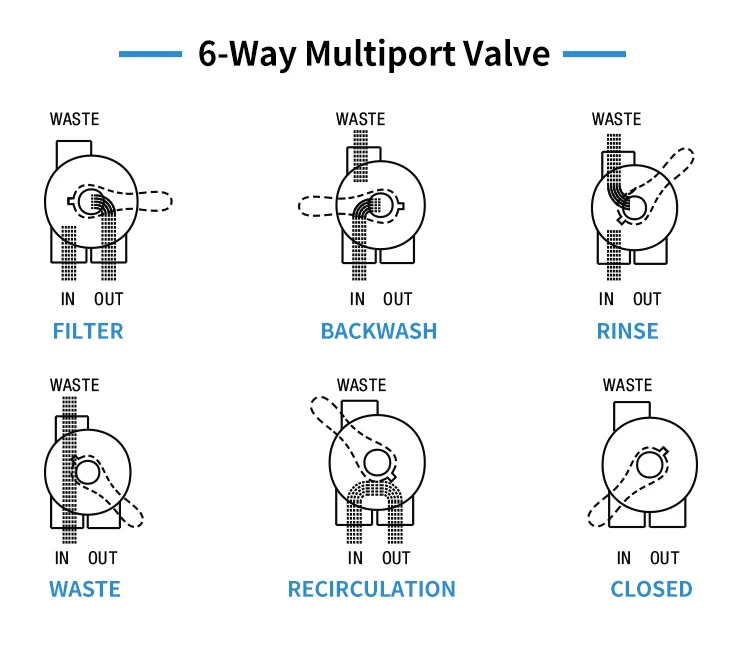

Valve Position | Function |
Filter | Normal Filtration |
Backwash | Cleaning filter by reversing the flow |
Rinse | Used after backwash to flush dirt from valve |
Waste | By-passes filter, used for vacuuming to waste or lowering water level |
Recirculation | By-passes filter for circulating water to fool |
Closed | Shuts off all flow to filter or pool |
Production Process
Product Application
