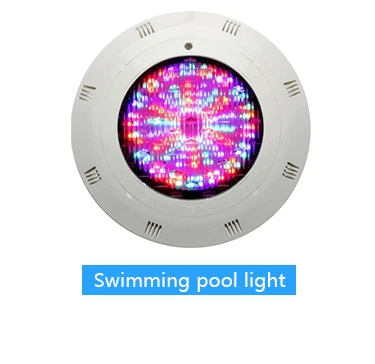

Cheap Price White Waterproof IP68 12V Under Water Swimming Pool Light
Model | Size (mm) | Light Source | Power (W) | Led Quantity (pcs) | Luminous Flux (LM) | ||
Pure White | Warm White | RGB | |||||

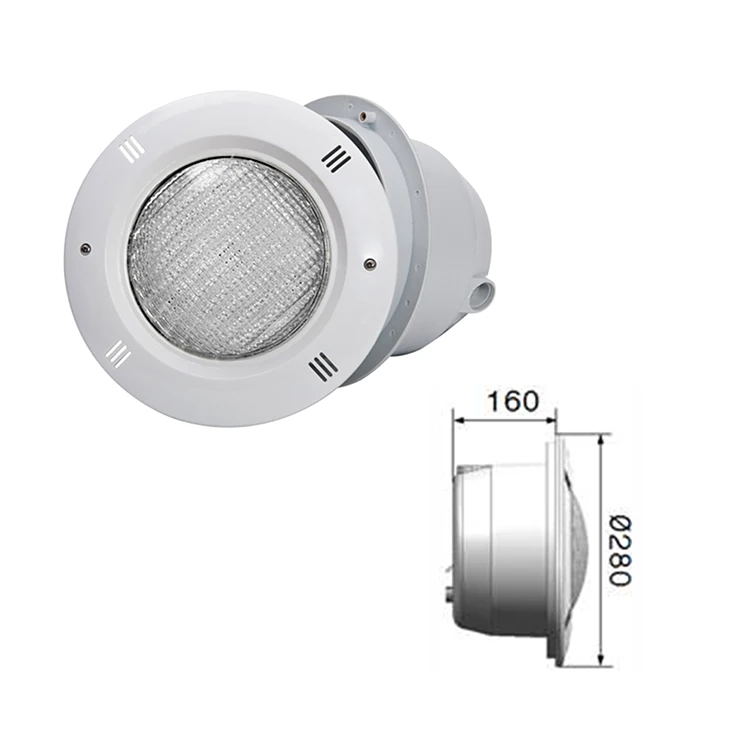

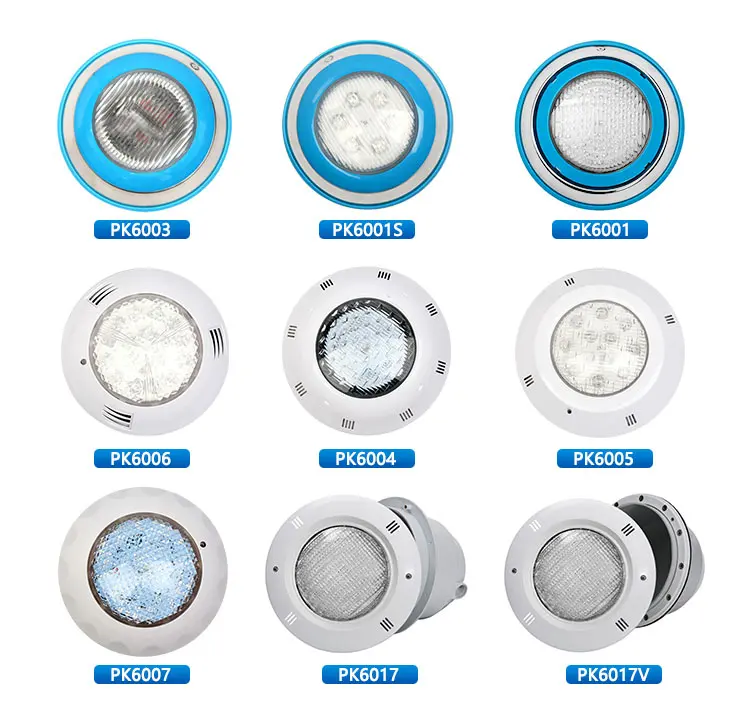

PK6017V | Φ280*160 | DIPφ5 LED | 15 | 252 | 1100 | 1000 | 550 |
25 | 441 | 1850 | 1700 | 900 | |||
30 | 513 | 2200 | 2100 | 1000 | |||
A brief introduction of underwater swimming pool lights
IP Rating | IP68 |
Operating Voltage | AC/DC 12V |
Body Material | Stainless steel 304 |
Input Frequency (Hz) | 50 ~ 60 Hz |
Color Temperature (K) | 6000-6500K / 8000-12000K / 2800-3000K |
Wave Length (nm) | R: 621-625nm / G: 518-520nm / B: 464-467nm |
Beam Angle | 45°for high power led, 120°for SMD/DIP led, or customized |
Constant Driver | Yes |
Over-current Protection | Yes |
Operating Temperature (℃) | -20 ~ +35℃ |
RGB Control Methods | 1) With Alternative Current (AC): Remote Control / (On/Off )Switch / Auto Changing 2) With Direct Current (DC): DMX / Wifi |
Lifetime | 50000 hours |
Warranty Period | 1 year |
Description of super bright ip68 12v wireless pool led underwater lighting
1. Super bright LED lamp, saving energy effectively, diversiform color provided, long using life, can stand high aseismatic, no UV and IR radiate, work safely under low voltage AC12V.
2. Adopt PWM invariableness currency technology, high effectively, low heating, in variableness currency at 12V, high precision.
3. Power supply efficiency: 80% , power factor: 0.9, EMI accord with global index .
4. Crust Temperature lower tahn 65°C(Environment Temperature =25°C).
5. Stainless steel and pc cover: antirust.6. IP68 waterproof: Groove and bayonet design perfectly between lights cover and light body.
Specification of underwater light
LED swimming pool light Installation instructions
1) Light should be set 30-40cm below the water level;
2) The outlet for the conduit should be positioned so as not to interfere with the mounting ring in any way.
3) Set conduit in wall before concrete is sprayed.
4) Render or Marblesheen mounting ring into wall;
5. Ensure that the outer face of mounting ring is flush with the finished pebble surface;
6. Transformer needs to be installed in an easily accessible area to allow for servicing when requiry.
