Features :
1) Asynchronous, two poles
2) Class insulation:130
3) IPX5 waterproof standard
4) Overlaod protector
5) Built in thermal protection
6) Heavy duty with ultra performance to both high and medium head installations in large-size swimming pools / commercial spa pools
7) Materials used are non- corrosive
8) Using NSK bearing
9) Ring lock seal design to eliminate suction leaks and to maximize suction efficiency
10) External heat sink to ensure maximum cooling capability
11) Available in 380v/50Hz, 200V/50Hz, 110V/50Hz
12) Specially made union to incorporate both metric& imperial measurement standard
Technical Characteristics :
| SB PUMP | ||||
| No | Model NO | Connection Size | Input power | Horsepower |
| 1 | SB10 | 2inch 63mm | 0.97kw | 1.0hp |
| 2 | SB15 | 2inch 63mm | 1.30kw | 1.5hp |
| 3 | SB20 | 2inch 63mm | 1.80kw | 2.0hp |
| 4 | SB30 | 2inch 63mm | 2.18kw | 3.0hp |
Product Dimension :

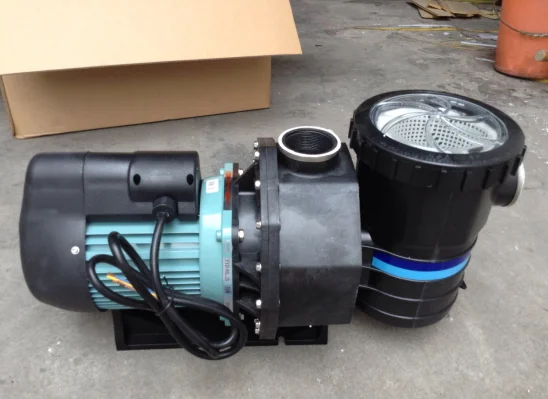

Photo :
